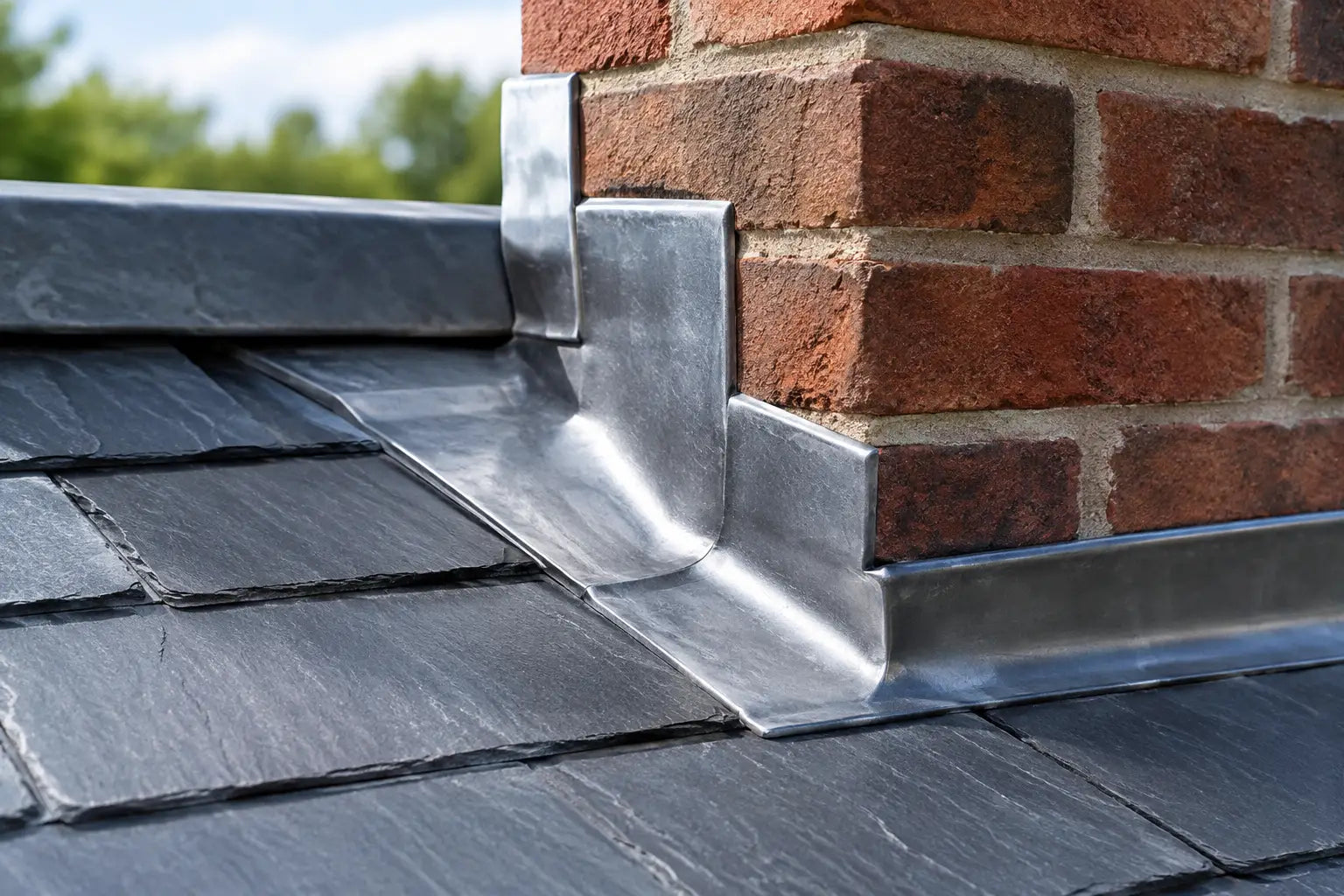

Lead Roofing Soakers for Weather-Tight Abutments
A tiled roof can look sound from the ground while the abutment is taking water behind every course. Lead roofing soakers are the concealed detail that deals with this weak point, directing water back onto the roof covering where a tile or slate meets a wall, chimney or other vertical upstand.
They are simple pieces of lead, but they are not an optional extra and they are not a replacement for properly formed flashing. Get the sequence, dimensions or fixing wrong and the result is usually staining, saturated battens, failed underlay and a call-back that could have been avoided.
What lead roofing soakers do
A soaker sits beneath each individual tile or slate along an abutment. Its horizontal section lies under the roof covering, while its vertical leg turns up the wall. Water that gets past the edge of the tile is caught by the lead and returned down the slope rather than being allowed into the roof structure.
In most tiled roof details, soakers work with stepped cover flashing. The soaker provides the concealed secondary weathering; the cover flashing protects the top edge and sheds water away from the wall junction. Both parts need to be present where the roof design calls for them. A strip of sealant at the edge is not an equivalent detail and will not compensate for missing leadwork.
The detail matters most on exposed elevations, at shallow pitches and wherever rain can be driven sideways against the abutment. It also matters on sheltered work. Water does not need a dramatic entry point - repeated small amounts behind a tile can cause substantial damage over time.
Where lead roofing soakers are used
Lead roofing soakers are commonly installed at side abutments to brickwork, rendered walls, chimney stacks and dormers. They are used with both tiles and slates, although the required shape and coverage depend on the roof covering and its gauge.
With interlocking concrete or clay tiles, a purpose-formed soaker must suit the tile profile and headlap. A flat piece that does not sit correctly beneath the course can lift the tile, open a gap or prevent the cover flashing from lying properly. With natural slate, the detail is often more closely formed to the slate gauge and side lap, with particular care needed to avoid visible lead edges or capillary paths.
Do not treat every abutment as identical. Tile profile, roof pitch, exposure, wall finish, flashing arrangement and batten position all affect the finished detail. On refurbishment work, inspect the existing roof build-up before ordering materials. The apparent tile size alone does not tell you what the junction needs.
Size the soaker for the roof, not the stock sheet
The temptation on a small repair is to use whatever lead offcut is available. That can be false economy. The horizontal width must extend sufficiently beneath the tile or slate to catch water reliably, while the upstand must give adequate cover behind the flashing detail.
The right dimensions are governed by the roof covering manufacturer’s requirements, the roof pitch and accepted leadwork practice. More exposure or a lower pitch may call for a more cautious detail. Conversely, oversizing a soaker without considering the tile profile can create bulk at the abutment and affect how the roof covering beds down.
Lead code also needs to be appropriate to the application. Soakers are generally formed from lighter lead than major gutter linings or large flashings, but the final specification should follow the project requirements and recognised leadwork guidance. Avoid mixing random thicknesses through a run just because they are available in the van. Consistent material makes for consistent forming and a cleaner finish.
For a full roof, calculate from the number of courses, not simply the length of the wall. One soaker is usually required for every course at the abutment, with allowance for cuts, awkward details and any damaged tiles encountered during the work. Ordering by the metre can reduce waste where soakers are being cut and formed on site, while ready-made units may save time on straightforward repetitive work.
Fitting soakers in the correct sequence
The sequence is what makes the detail work. Start with a sound substrate, correctly installed underlay and battens set out for the tile or slate gauge. If the roof covering is already distorted, loose or poorly gauged, fitting new soakers alone may not solve the underlying problem.
Each soaker is installed as the roof is laid, not pushed into place afterwards. The lower edge should discharge onto the tile or slate below, and the next course should overlap it correctly. Its upstand sits against the wall, ready to be covered by stepped flashing or the specified wall detail.
Keep the lead flat where it needs to lie flat, with neat bends rather than crushed folds. A soaker that is buckled under the tile can hold the covering up and create a route for wind-driven rain. Equally, do not overwork the lead. Repeated bending in the same spot can weaken it, particularly when using reclaimed material.
Fixing should be minimal and deliberate. The lower, water-shedding area must not be punctured with exposed nails or screws. Where restraint is needed, use a method suitable for the detail and keep fixings high and protected. Lead needs room to respond to temperature changes, so avoid pinning a long run of associated flashing so tightly that movement is restricted.
A compatible underlay is part of the same weathering system. It should support the roof covering and carry any incidental moisture safely to the eaves, not be relied upon as the main defence at a poorly detailed abutment.
Common failures seen on site
The most common fault is omission. Soakers are sometimes left out where a cover flashing has been installed, on the assumption that the flashing alone will deal with the junction. Water can still track behind the tile edges, especially in heavy weather.
Another frequent problem is insufficient overlap between the soaker and the course below. This can produce a leak that appears only in certain wind directions, making diagnosis frustrating. Check the roof covering gauge before cutting a batch of lead, rather than discovering halfway up the abutment that the pieces are too short.
Poor flashing integration causes problems as well. If the cover flashing does not adequately protect the soaker upstand, debris and water can enter behind it. Mortar pointing, render or chased brickwork must finish the detail correctly without trapping the lead or creating a rigid point that prevents sensible movement.
Watch for incompatible materials and careless contact with wet mortar, timber treatments or runoff from adjacent metals. Leadwork performs best when surrounding materials are considered as part of the detail, not added one after another without checking compatibility.
Before stripping the scaffold, inspect four things: every course has a soaker, each soaker discharges onto the course below, the tiles or slates sit without rocking, and the cover flashing protects the upstands throughout the run. That short check is faster than opening up a finished roof after the first storm.
Repair work versus full replacement
A local repair can be the right answer where damage is limited to a slipped tile, a split soaker or a small section disturbed by other works. Lift enough of the roof covering to reinstate the overlap properly. Sliding a patch of lead into a visible gap may stop water temporarily, but it rarely recreates the intended weathering sequence.
Where several soakers have failed, the flashing is loose or the battens and underlay show water damage, treat the area as a system. Replacing only the visible lead may leave the cause untouched. This is particularly relevant on older properties where previous repairs may have introduced mastic, short flashings or mismatched tile gauges.
For repeat work and planned maintenance, keep the material specification consistent. Leadworkers supplies specialist leadwork consumables in order sizes that suit repair work, single elevations and larger contracts, so you can buy for the job rather than carry unnecessary stock.
A properly detailed abutment is mostly hidden once the roof is complete. That is exactly the point. If the soakers, flashing and roof covering work together, the detail should quietly shed water for years while the rest of the roof gets the credit.
