Chimney Lead Flashing Materials That Last

A chimney is one of the roof’s busiest details. It has vertical faces, changes in pitch, mortar joints, abutments and corners - all places where water will find a weakness. Choosing the right chimney lead flashing materials is not simply a matter of buying lead sheet and sealant. The finished detail depends on compatible lead, fixings, underlay and finishing products working together without restricting movement.

For a professional job, specify the materials around the detail in front of you: the chimney construction, roof covering, exposure, flashing lengths and how the lead will be dressed. A sound material choice saves time on site and avoids returning to cure staining, failed fixings or a flashing that has split because it could not move.

Start with the chimney detail, not the shopping list

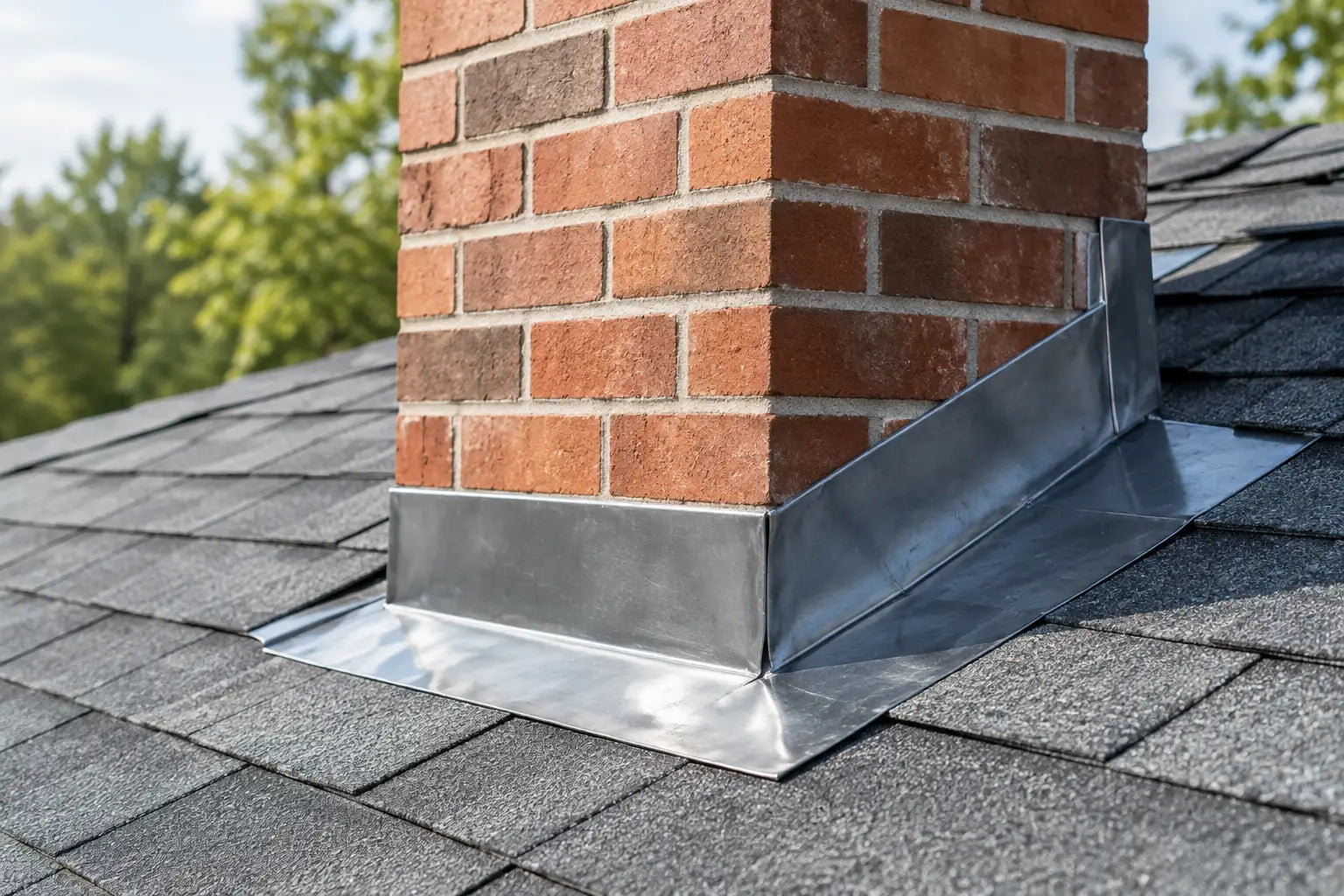

A chimney flashing arrangement commonly includes soakers at the sides, an apron at the front, stepped cover flashings chased into the brickwork, and a back gutter or saddle at the rear. Each section performs a different job, so the material requirements are not identical.

The apron needs to shed water cleanly onto the roof covering. Soakers need to remain correctly positioned between each course of slate or tile while allowing the roof to drain. Stepped flashings need secure, neat fixing into the masonry without pinning the lead too tightly. The back gutter often carries the greatest volume of water and needs particular attention where the roof is exposed or the chimney is wide.

This is why a one-size-fits-all approach causes trouble. The lead code, sheet sizes, clip arrangement and fixing method should suit the individual section. Long pieces of lead need proper allowance for thermal movement. Short, well-considered bays are more reliable than trying to force a large sheet to behave as one fixed piece.

Lead sheet: select the right code for the work

Lead sheet remains the working material for traditional chimney flashing because it can be dressed to irregular masonry and roof profiles, provides long service when installed correctly, and suits repairs as well as new work. Its performance, however, relies on selecting the appropriate code and laying it in manageable lengths.

A lighter code may be suitable for certain soaker applications, while cover flashings, aprons and gutters generally need a heavier specification appropriate to their exposure and duty. Do not select purely by what is left over from another job. Thin material can be easier to dress, but it may not be suitable for a high-wear or high-flow area. A heavier sheet brings greater durability but requires more care when forming, handling and supporting it.

The chimney itself also affects the choice. Uneven, weathered brickwork may need a flashing with enough substance to dress cleanly and retain its shape. On a listed or heritage property, matching the appearance and detailing of existing leadwork can be as important as the practical repair. In all cases, work to the relevant leadwork guidance and detail the job around movement, laps and drainage rather than relying on sealant to compensate for poor formation.

Avoid over-long lengths

Lead expands and contracts with temperature changes. A chimney sits above the roofline and is often exposed to direct sun, wind and driving rain, so movement is not theoretical - it is part of the detail. If a sheet is over-long or fixed too rigidly, it can fatigue, buckle or split.

Use sensible bay lengths, correctly positioned clips or fixing strips, and expansion provision where required. The aim is to hold the lead where it needs holding while letting it move where it needs to move. That balance is what separates a durable flashing from one that looks tidy on handover but fails early.

Fixing strips and nails: secure the lead without trapping it

Fixing is often where chimney leadwork goes wrong. A flashing can be formed well but still fail if it is nailed through unnecessarily, secured with incompatible materials or fixed so tightly that movement is restricted.

Copper and stainless-steel fixing strips provide a practical way to secure leadwork at edges and laps. The right choice depends on the detail, the surrounding materials and the fixing method being used. Both are specialist products, not an afterthought to be replaced with whatever strip happens to be in the van.

Annular ring shank nails give strong holding power for fixing strips and associated leadwork details. Use the correct nail length for the substrate and avoid creating a fixing pattern that pins the lead across its face. The lead should be retained at designated points, not perforated repeatedly because a corner is difficult to keep flat during installation.

For stepped flashings chased into brickwork, the chase should be clean and properly formed. The flashing needs enough depth in the joint and should be wedged or secured correctly before pointing. A loose chase filled with mastic is not a substitute for a proper mechanical detail.

Underlay matters beneath the flashing

Where lead is laid over roof surfaces or within gutter details, the material beneath it matters. A suitable lead roof underlay helps separate the lead from incompatible backgrounds, supports the sheet and allows for controlled movement.

A1F lead roof underlay is designed for leadwork applications where a suitable separation layer is needed. It is particularly useful when working over timber or roof deck areas, including back gutters and wider apron details. The underlay should be laid flat and clean, with no trapped debris, sharp edges or fixings that could mark through the lead over time.

Do not assume that any roofing felt will do the same job. General membranes can have different properties and may not be intended for direct contact with lead. Use products specified for leadwork, and keep the substrate dry, sound and properly prepared before covering it.

Sealants and mortar: use each where it belongs

Sealant has a place in chimney flashing work, but it is not the primary waterproofing system. The lead laps, falls, turns and chase detail should manage water mechanically. Sealant should support the detail where appropriate, not rescue a badly chased flashing or bridge a gap created by poor dressing.

Choose a sealant suitable for external leadwork and masonry contact. Check that the surfaces are clean and dry enough for application, particularly when carrying out repairs in changeable weather. Old mortar, dust, algae and loose material will reduce adhesion and can make a seemingly simple repair short-lived.

Where a flashing is pointed into masonry, use a suitable mortar or pointing approach for the building fabric and existing joints. Historic brickwork may require a more sympathetic solution than a modern hard mortar. Forcing a dense mortar into soft, aged masonry can cause damage around the chase and make later repairs more difficult.

Patination oil protects the finish

Fresh lead can develop white surface staining as it weathers. This is particularly noticeable on chimney work where runoff can mark slates, tiles, brickwork or rendered surfaces below. Patination oil helps control this early surface oxidation and gives the installed lead a more even initial appearance.

Apply it to clean, dry lead in line with the product instructions, including dressed surfaces and areas likely to shed water onto visible finishes. It is a finishing treatment, not a cure for contamination, poor installation or unsuitable material contact. If the lead has been dragged across dirty surfaces or marked during works, clean and prepare it properly before applying the oil.

Do not overlook soakers and back gutters

Side soakers are small components, but their role is critical. Each one needs to sit correctly with the roof covering and direct water back onto the roof, not into the side of the chimney. Poorly sized soakers, inconsistent laps or rushed cuts can leave a chimney prone to leaks that are difficult to trace from inside.

Back gutters deserve the same attention. They collect water from both roof slopes and can become a pressure point during heavy rainfall. Make sure the gutter has adequate fall, sensible outlet provision and no unnecessary restrictions around the rear corners of the stack. On large chimneys or exposed roofs, the detail may need a more considered design rather than a standard folded tray.

Buy for the job in hand

Chimney work rarely uses materials in neat, full-pack quantities. A repair may need a few metres of fixing strip, a tub of nails and enough underlay for one back gutter. A larger programme may justify box quantities and saver packs. Buying to the detail reduces waste and stops usable specialist stock sitting on a shelf for years.

Leadworkers supplies leadwork consumables in practical quantities, including per-metre options for selected products. That makes it easier to order for the chimney detail being installed, whether it is a one-off repair, a reroof or a run of similar plots.

Before ordering, measure the flashing runs, allow for laps and upstands, check the likely fixing points and consider the finish beneath the lead. A chimney flashing is only as dependable as the materials behind the visible line. Get those right before the lead is dressed, and the finished work has every chance of staying dry, secure and presentable for years.
