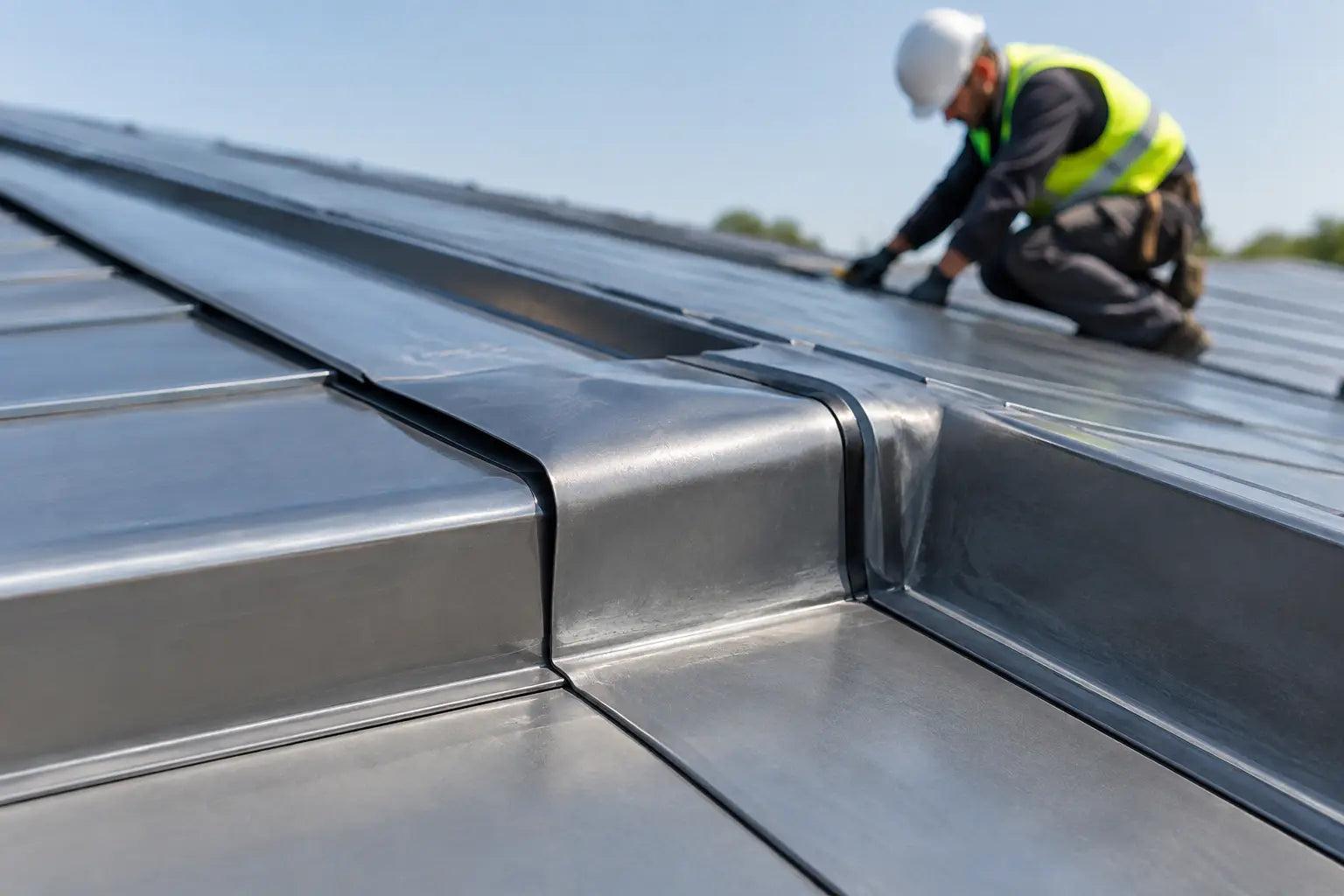

Lead Expansion Joints for Reliable Roof Details
A split in a long lead detail rarely starts where anyone can see it. It usually begins when normal thermal movement has nowhere to go. Lead expansion joints provide a controlled break in the covering, allowing adjoining sections to move without forcing stress into the sheet, fixings or surrounding detail.
For lead contractors, this is not an optional finishing item added at the end of a job. The joint needs allowing for when setting out the bays, planning laps and choosing fixing positions. Get that sequence right and the finished roof detail can move as intended. Get it wrong and a neat-looking installation can become a call-back after its first full cycle of hot and cold weather.
What lead expansion joints are there to do
Lead expands in warm conditions and contracts as temperatures fall. The movement is gradual, but on longer runs, wide details and exposed roof areas it can be enough to fatigue the lead or pull against a restrained edge. A correctly detailed expansion joint separates sections of leadwork so each area can move independently.
The joint also has to maintain weathering. It cannot simply be a gap between two sheets. The detail must shed water, allow the lead to move and remain compatible with the surrounding roof build-up. That is why the position, profile and installation method matter as much as the joint itself.
Expansion provision is particularly relevant on long gutters, wide flat roof coverings, parapet details, aprons and other areas where lead is laid continuously over a substantial length. The exact bay size and joint spacing should follow the relevant leadwork guidance, the sheet code and the geometry of the detail. There is no sensible one-size-fits-all measurement for every roof.
When to allow for an expansion joint
A short flashing on a sheltered elevation does not face the same movement as a long, south-facing valley or parapet gutter. Before ordering materials, assess the detail as a whole: sheet length, width, exposure, substrate, roof pitch, junctions and how the lead will be held.
Long runs need planned breaks
Where a lead detail exceeds the recommended dimensions for a single bay, plan a movement break rather than stretching the bay size to save a joint. A long unbroken run may look efficient during installation, but it can put the lead under strain as soon as temperatures change.
Set out bays before cutting the lead. This avoids ending up with an awkward narrow section at one end, or placing a joint where water naturally tracks across a difficult junction. Joint locations should work with falls, laps and outlets rather than fight them.
Restrained edges increase the risk
Lead needs room to move, so consider every point at which it is fixed or trapped. Clips, fixing strips, welted edges, upstands and adjacent materials all affect the way movement is distributed. Over-fixing a sheet can be as damaging as failing to include a movement joint in the first place.
Use the correct fixing method for the detail and material. Copper and stainless-steel fixings each have their place, but the choice should suit the leadwork, exposure and specification. The aim is to secure the covering without creating unnecessary restraint.
Choosing lead expansion joints for the detail
Buy for the actual roof detail, not just the overall metreage. Check the profile dimensions, intended application and how it will marry into the lead sheet and substrate. A joint that is right for a straightforward run may not be suitable around a corner, outlet, change of level or complicated abutment.
Compatibility matters. The joint, sealant where required, underlay and fixing arrangement must all work together. Do not assume a general-purpose roofing sealant is suitable simply because it adheres to lead. If sealant is part of the specified detail, use one intended for that application and keep it where it is needed. Excess sealant is not a substitute for a correctly formed weathering detail.
Allow enough joint material for overlaps, cuts, returns and site waste. Ordering the exact measured run can leave you short once you have formed ends and dealt with roof irregularities. Equally, there is little point tying up money in excessive lengths of specialist material. Buying by the metre is useful where a job needs a precise quantity, while packs can make more sense for repeat work or multiple bays.
Fit the joint as part of the roof sequence
An expansion joint performs best when it is fitted into a prepared, clean and properly supported detail. Do not treat it as a repair strip to cover a problem after the lead has already been laid. The substrate should be sound, dry and free from sharp projections that could damage the lead or joint during movement.
Start with the setting out. Mark the joint position, check falls and confirm that water will be directed over the weathering arrangement. If the detail includes an outlet, avoid creating a joint arrangement that channels water into a weak point or leaves a difficult-to-maintain section behind a lap.
Fit the underlay specified for the leadwork before laying the sheet. A suitable underlay helps separate the lead from the substrate and supports normal movement. It is not an excuse for poor substrate preparation, but it is part of a durable lead roof build-up.
Form the adjoining lead sections accurately and keep the joint line consistent. Avoid forcing the material tight or using fixings to pull a poorly set-out sheet into position. Leadwork should sit naturally in the detail. If it is under tension on the day of installation, it will not improve once weather conditions change.
Finish edges, laps and terminations cleanly. The joint must remain weatherproof while retaining its purpose as a movement break. Follow the joint manufacturer's instructions and the project specification where these set out a particular sequence, overlap or sealing requirement.
Common faults that lead to failures
The most frequent problem is treating the joint as a visible strip rather than a working part of the roof. A joint can look tidy and still fail if the lead either side is fixed too tightly to move.
Other avoidable faults include placing joints without considering the fall, using them where a properly detailed lap or separate bay is required, and trying to make up for poor workmanship with sealant. Another issue is joining incompatible materials without considering corrosion or movement. Lead roofing is a system, not a collection of separate products.
Cutting too close to the required length can also create trouble. A rushed site alteration may remove the overlap or return needed for a watertight finish. Measure the run, add for the formed detail and keep enough material on site to deal with a legitimate adjustment.
Finally, do not ignore the rest of the roof when checking a suspected movement issue. A split near a joint may be caused by a blocked outlet, failed support, incorrect fixing pattern or movement in the structure below. Replacing the visible section without addressing the cause simply moves the problem along the run.
Order the right quantity for the job
For a one-off repair or a short run, buying lead expansion joint material by the metre keeps waste down and helps protect the job margin. For larger roof areas, repeated details or planned maintenance work, saver packs and box quantities can be the practical choice.
Have the key information ready before ordering: the total run, number of joint positions, profile required, lead code, substrate arrangement and any associated underlay, fixings or sealant. This makes it easier to order the correct materials together and reduces the risk of delaying a job for one missing component.
Leadworkers supplies specialist leadwork consumables in flexible quantities, so contractors can buy what the detail requires rather than carrying unnecessary stock. For large or non-standard orders, it is worth confirming the requirement before work starts, particularly where programme timing is tight.
A well-positioned joint is easy to overlook once the roof is complete. That is exactly how it should be. The detail should quietly allow the lead to do what lead has always done - move with the weather while continuing to keep water out.
