A1F Building Paper BS1521 for Lead Roofing
Lead can look sound when it is first dressed and fixed, then suffer underside corrosion years later because the layer below it was wrong. A1F building paper BS1521 is specified to keep lead sheet separate from potentially harmful backgrounds while providing a traditional, compatible layer in the roof build-up. It is a small part of the job, but omitting it or substituting it with an unsuitable membrane can undermine a good leadwork installation.
For lead roofing, flashings and gutter details, the underlay must be considered alongside the lead code, substrate, fixing method, ventilation and joint layout. Building paper is not there to correct poor detailing. It has a specific job: separating the lead from the deck or boarding beneath it and helping protect the underside of the sheet.
What A1F building paper BS1521 is used for

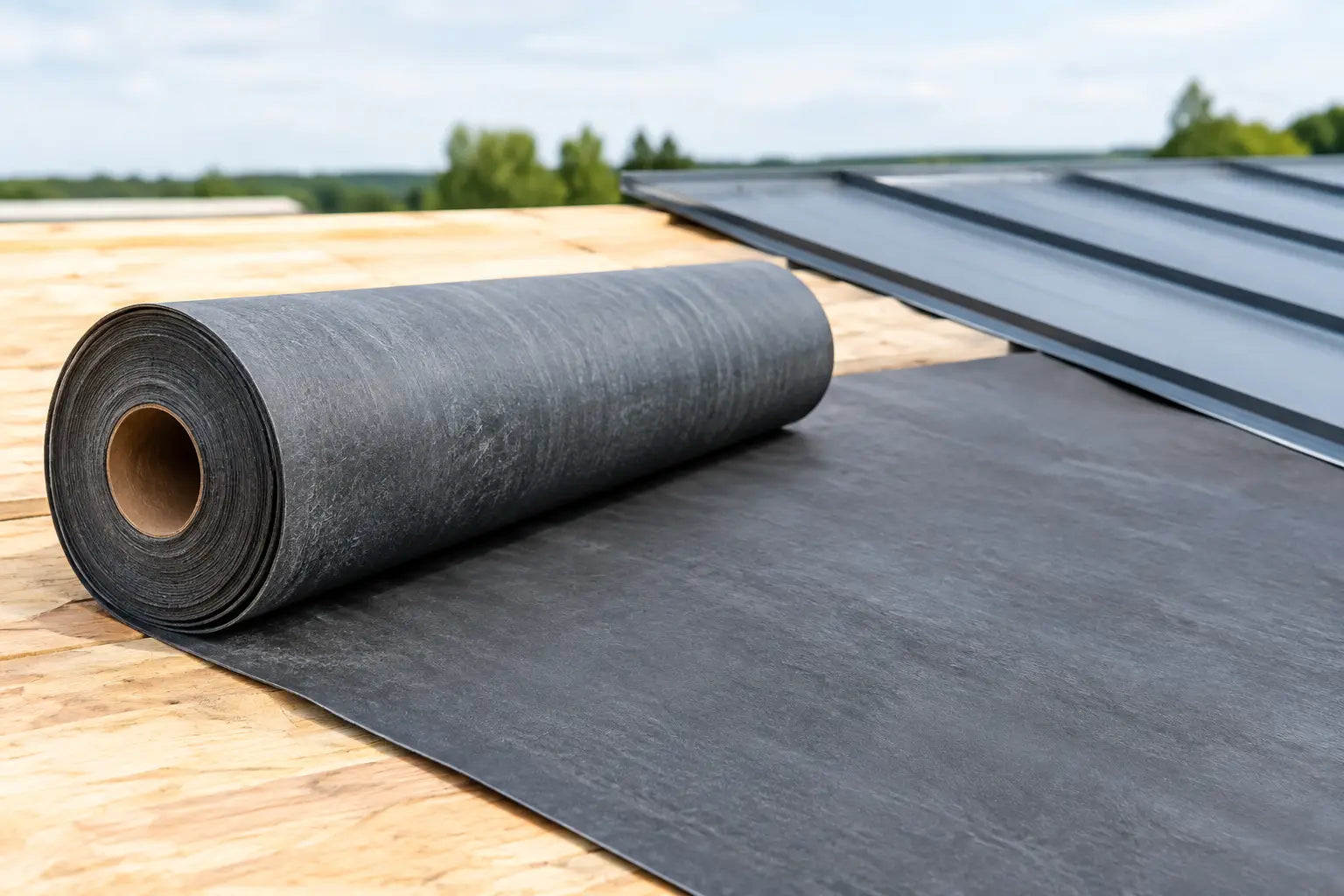

A1F building paper is a bitumen building paper supplied for use beneath lead sheet and other roofing applications where a traditional separation layer is required. The BS1521 reference relates to the British Standard historically associated with bituminous building papers. On leadwork, it is commonly used over timber boarding before installing lead coverings, soakers, gutters, valleys and similar details.
The main concern is compatibility. Timber, timber treatments, moisture and residues in some substrates can all create conditions that are unfriendly to lead. Direct contact can increase the risk of staining or corrosion on the unseen face of the lead. The paper provides a barrier between the two materials.
It also gives the lead a more suitable surface to sit over. Lead moves with temperature changes, and its supporting layers need to accommodate that movement without creating avoidable abrasion or snagging. This does not remove the need for correct bay sizes, expansion provision and fixing positions. It supports those details rather than replacing them.
Why the layer beneath lead matters
Most lead failures are not caused by one dramatic mistake. They result from several small decisions: an incorrect underlay, poor drainage, restrictive fixings, untreated cut edges or inadequate allowance for thermal movement. The lead may be of the correct code and still be working against a background that shortens its service life.
Timber is a common example. Roof boards are a normal substrate for lead, but the lead should not simply be laid directly onto them. Moisture retained within the construction, naturally occurring compounds in the timber, and chemicals from preservation treatments can all be relevant. A suitable building paper separates the materials and reduces direct exposure.
This is especially worth checking on repair work. The existing deck may include old boards, plywood, treated timber or mixed patch repairs. Do not assume that because the lead is going back into the same position, the original substrate is suitable. Strip back enough of the detail to assess the support, the fall, the condition of the boards and the layers already present.
It is not a substitute for ventilation or falls
A1F paper should not be treated as a waterproofing shortcut beneath a poorly formed lead roof. Standing water, blocked outlets, ponding on a gutter lining and trapped moisture require the underlying cause to be dealt with. A separation layer cannot make up for a deficient fall or an unventilated construction that holds damp against the lead.
Likewise, do not use the paper to conceal rough, uneven or damaged boarding. The substrate should be properly supported, smooth and free from protruding fixings. Any nail head, splinter or sharp edge below the lead can become a point of damage as the sheet moves over time.
Where to use A1F paper in a lead roof build-up
The exact build-up depends on the detail and specification, but A1F paper is generally placed directly over the prepared timber substrate and beneath the lead sheet. Keep the paper flat and continuous across the area being lined. Overlap joints sufficiently so the timber is not exposed through gaps, and avoid excessive build-up at laps that could telegraph through a lighter lead detail.
On a simple lead-lined gutter, this means preparing the gutter boards and falls first, fitting the building paper, then forming and securing the lead in accordance with the detail. On a valley or flat lead roof, the same principle applies, but the design of bays, drips, rolls, welted edges and expansion joints will determine the installation sequence.
At interfaces, think ahead. The underlay should support the complete lead detail without obstructing outlets, forming ridges at laps or creating a path that holds water. Where a specification calls for another separation or ventilation layer, follow that specification rather than assuming one product suits every construction.
Check the substrate before ordering
A1F building paper is appropriate for many conventional lead-on-timber jobs, but material selection is never completely generic. A project may have a proprietary roof system, insulation above deck, plywood specified by an architect, a heritage requirement or a manufacturer’s installation instruction that calls for a particular membrane. In those cases, work to the project specification.
This matters on warm roofs and complex refurbishments in particular. Vapour control, insulation position and condensation risk are construction issues, not simply leadwork issues. The lead underlay needs to be compatible with the whole assembly.
Practical fitting points on site
Store rolls dry and keep them clean before use. Wet, torn or heavily creased paper is not good preparation for a lead finish. Sweep the deck, remove loose fixings and check that the boarding is firm before rolling out the paper.
Fix the paper only as much as necessary to hold it in place before the lead is installed. Keep fixings tidy and avoid unnecessary punctures or raised areas. The lead should be fixed using the correct clips, strips and fixing method for the detail, not nailed indiscriminately through the main sheet because the paper is underneath.
Take care around corners, outlets and changes of direction. Cutting the paper neatly is better than forcing it into a tight corner where it will bunch up. Any bulky fold under a lead lining can affect the finished appearance and create a point where water or debris sits.
If the job is exposed between stages, protect the work sensibly. Building paper is one component in the finished build-up, not a permanent weather layer to leave open to site traffic and prolonged exposure. Programme the work so the lead can be installed without unnecessary delay.
Do not confuse A1F paper with a general-purpose membrane
Many membranes are sold for roofing, but that does not automatically make them suitable beneath lead. Breathable membranes, plastic sheets, self-adhesive products and modern underlays all have different compositions and intended uses. Some may be specified as part of a tested system, while others can be unsuitable in direct contact with lead or inappropriate for the movement expected in leadwork.
The safe approach is straightforward: use a recognised lead underlay where the detail calls for one, and check compatibility where the build-up is non-standard. A cheap substitute is rarely a saving if it creates a future corrosion issue or means returning to lift finished leadwork.
The same applies to timber treatment. If treated boards are being used, confirm that the treatment and the complete underlay arrangement are appropriate. Never rely on visual appearance alone. Fresh timber can look harmless while carrying treatment chemicals that should not be in contact with lead.
Buying the right amount for the job
Measure the developed area, not just the roof plan. Gutters, upstands, drips, valleys and returns all use more material than a quick length-and-width estimate suggests. Allow for laps, trimming and sensible waste, particularly where the detail has multiple corners or separate bays.
For small repair work, buying only the required length helps avoid a half-used roll sitting in the van or stores until it is damaged. For larger roof areas, full rolls or saver quantities can make more sense. Leadworkers supplies specialist leadwork materials in flexible quantities so contractors can order for the detail in front of them rather than overstocking general materials.
Before placing the order, check the lead specification as well. The underlay, clips or fixing strips, nails, sealant, expansion provision and finishing products should all suit the same job. Ordering these together reduces the chance of losing a day because one small but essential item has been missed.
A correctly specified A1F paper layer will not be the most visible part of a completed roof, but it is one of the details that helps the lead perform as intended. Prepare the deck properly, use the right separation layer and keep the rest of the leadwork detail equally disciplined.
